Profoto Expert Pro 250-500 Technical Manual
Detailed technical information for Profoto Expert Pro 250-500 repair, maintenance and professional reference.
Document information
Profoto Expert Pro 250-500
Brand
Profoto
Model
Expert Pro 250-500
Category
Light
Format
PDF
Pages
1
File size
57.9 KB
Sign in to EnginBox to access available technical resources.
About this document

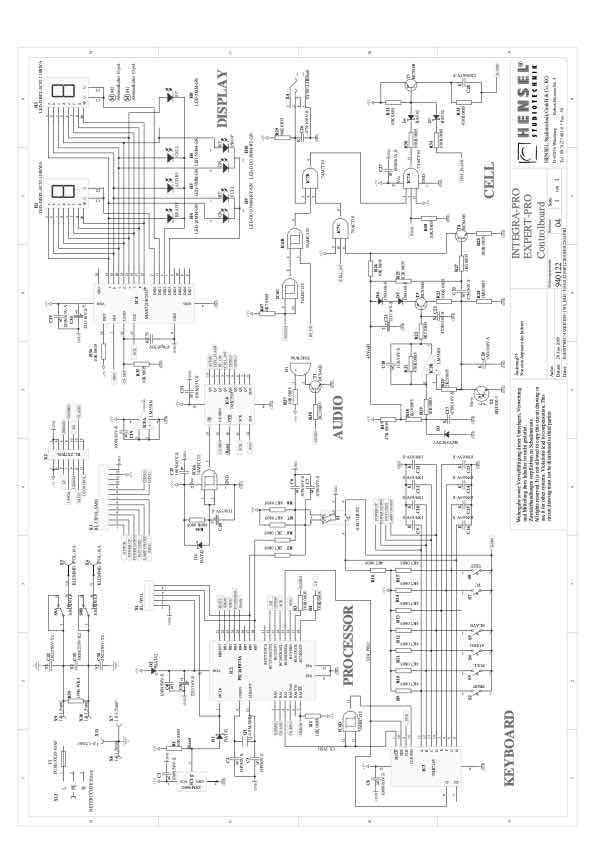

One-sheet schematic for the expert Pro 250 500 Controlboard wiring diagram for the Profoto Expert Pro 250-500 light. The drawings show flash synchronisation and the audio path, so a fault can be traced on the bench. Keep it beside the Profoto Expert Pro 250-500 when a signal path or a supply rail has to be checked.
