Oconnor 150 Technical Manual
Detailed technical information for Oconnor 150 repair, maintenance and professional reference.
Document information
Oconnor 150
Brand
Oconnor
Model
150
Category
Fluid Head
Format
PDF
Pages
1
File size
328.6 KB
Sign in to EnginBox to access available technical resources.
About this document

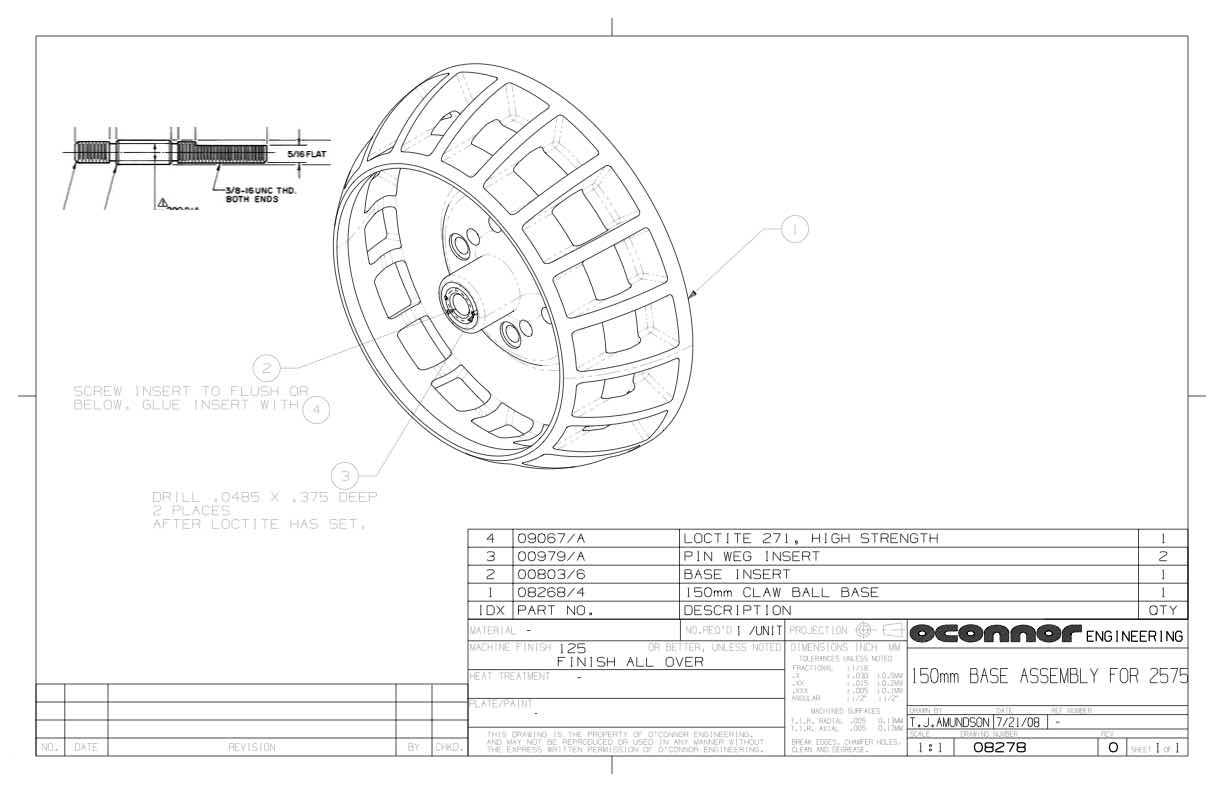

Assembly drawings for the Oconnor 150mm ball base fluid head. The charts show how the unit goes back together, including parts identification. Rebuild work on the Oconnor 150mm ball base starts from these drawings. It is the assembly drawing to keep with the Oconnor 150mm ball base.
