Hensel Head PRO MINI Technical Manual
Detailed technical information for Hensel Head PRO MINI repair, maintenance and professional reference.
Document information
Hensel Head PRO MINI
Brand
Hensel
Model
Head PRO MINI
Category
Light
Format
PDF
Pages
1
File size
206.9 KB
Sign in to EnginBox to access available technical resources.
About this document

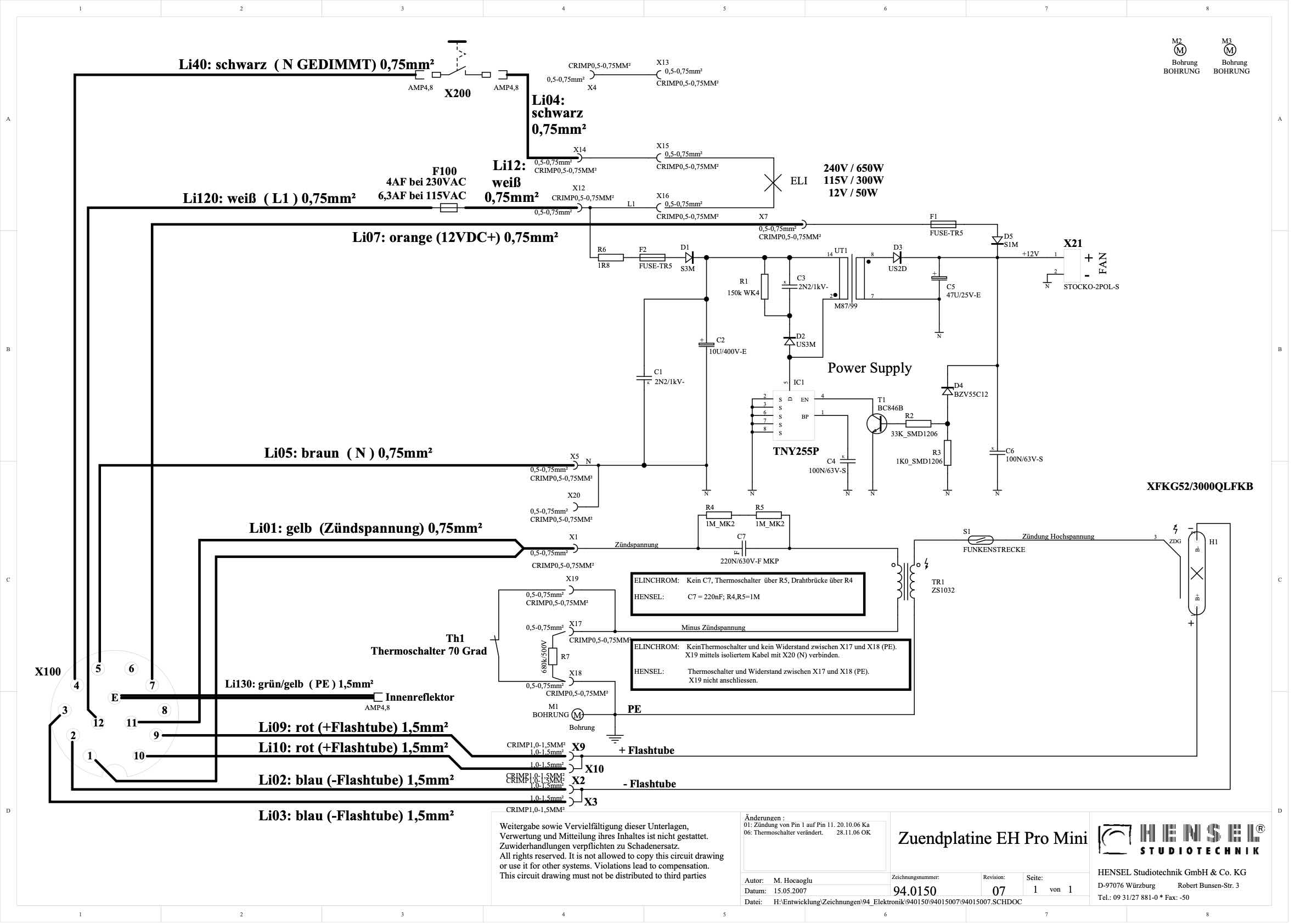

One-sheet schematic for the head PRO Mini Wiring diagram for the Hensel Head PRO MINI light. The sheets show how the circuits of this light are laid out. Keep it beside the Hensel Head PRO MINI when a signal path or a supply rail has to be checked.
