Anton Bauer General Schematics Technical Manual
Detailed technical information for Anton Bauer General Schematics repair, maintenance and professional reference.
Document information
Anton Bauer General Schematics
Brand
Anton Bauer
Model
General Schematics
Category
Power Systems
Format
PDF
Pages
2
File size
369.9 KB
Sign in to EnginBox to access available technical resources.
About this document

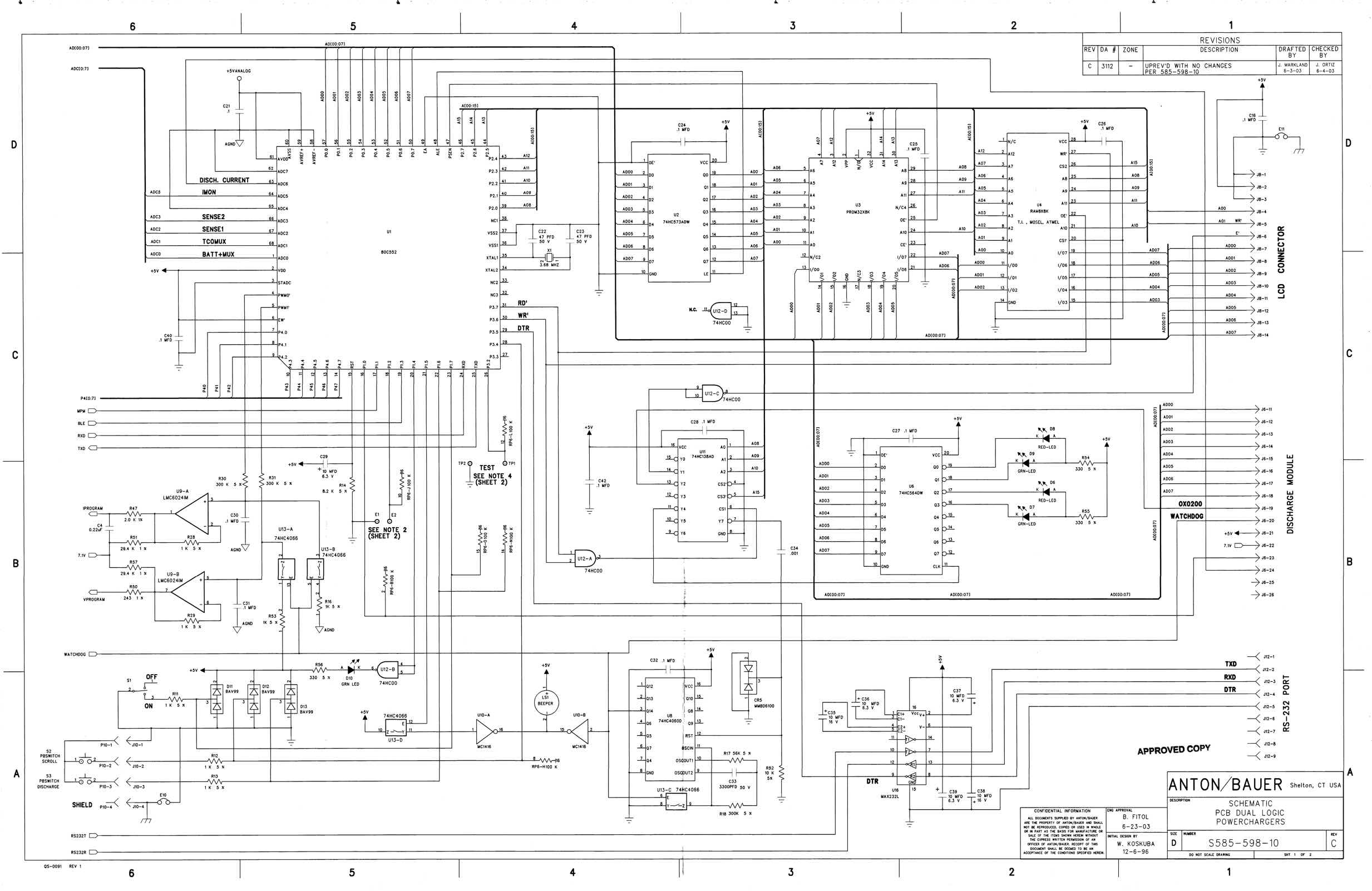

Schematic documentation for the S5855 9810 Dual Logic schematic for the Anton Bauer DUAL Logic power system. The sheets show how the circuits of this power system are laid out. Keep it beside the Anton Bauer DUAL Logic when a signal path or a supply rail has to be checked.
